Welcome to the Premier industrial source for ANSI/ ASME B16.9 Buttweld Swedge Nipple

We are widely recognized as a worldwide inventory leader for ANSI/ ASME B16.9 Buttweld Swedge Nipple



You are Here Home Products Buttweld Fittings Swedge Nipple



Content


Sagar Forge & Fittings is one of the leading manufacturer and exporter of the High Grade ANSI/ ASME B16.9 Buttweld Swedge Nipple which use in various industries.ANSI/ ASME B16.9 Buttweld Swedge Nipple are manufactured according to the International standards, namely, the American standard [ANSI/ASTM], the British standard [BS EN] , and the DIN/European standard [EN].

In Sagar forge & Fittings highly strict quality controls are implemented on every step of production to ensure the product quality delivering to the market. Through years of hard work and continuing improvement of quality, we are certified and accredited with the ISO 9001:2008 for our entire quality system

With years of experience in manufacturing ANSI/ ASME B16.9 Buttweld Swedge Nipple we offer high quality, lower cost but the best service. As a result to that our export account today is in various countries like Saudi arabia, Dubai, Turkey, Kuwait, USA , Canada & Oman.We welcome your inquiries for complete projects or just one fitting.



ANSI/ ASME B16.9 Buttweld Swedge Nipple Specification

  • Fittings Type:

    Butt Weld Fittings:
    LR & SR Elbows, Tees, Ecc., and Conc., Reducers & Caps
    Forged Fittings:
    Socket Weld, Threaded fittings, Pipe nipple and Swage nipple and Butt welding outlets


  • Standards:

    ASME B16.9, ASME B16.28, and ASME B16.25
    ASME B16.11, and MSS-SP 97


  • Material and Grades:

    Carbon Steel:
    ASTM A234 Gr. WPB
    ASTM A420 Gr. WPL6
    ASTM A105
    ASTM A350 Gr. LF2
    Stainless Steel:
    ASTM A403 WP316/316L
    ASTM A403 WP304/304L
    ASTM A182 F316L, 304L


  • Available Sizes:

    Butt Weld Fittings:1/2" to 102"
    Forged Fittings:1/8" to 4"
    Outlets: Up to 36"

    Other grades or sizes may be available upon request.


  • Specification Compliance Data for Swage Nipples

    End Connections
    Threads ANSI/ASME B1.20.1
      API 5B
    Beveled Ends ANSI B16.9
    Square Cut Ends ANSI B16.11

    Swage Nipples
    Stainless ASME/ASTM SA403WP
    Low Temp ASME/ASTM SA403WP
    Nickel Alloy ASME/ASTM SB366

    Materials
    Stainless ASME/ASTM SA312 & 182
    Chrome & Low Temp ASME/ASTM SA335, 333, 182, 350
    Nickel Alloy ASME/ASTM SB161, 165, 163, 407, 464, 622, 160, 164, 166, 408, 473, 619



What Makes Us Different

Sagar forge & Fittings was incorporated in 1980 in the field of metal industries as a leading ANSI/ ASME B16.9 Buttweld Swedge Nipple manufacturer. We recognized that the piping industry had two demands from a ANSI/ ASME B16.9 Buttweld Swedge Nipple manufacturer. First, a quality product designed to work efficiently and economically. Secondly, a product delivered when needed. Sagar forge & Fittings built its business on these two simple, yet vital foundations and continues to provide exceptional ANSI/ ASME B16.9 Buttweld Swedge Nipple with unsurpassed service.

Sagar forge & Fittings employees take personal pride in production and delivery efforts and are committed to a high standard of excellence for customer service. These commitments are carried throughout our organization daily from answering the first call to shipping the last product out the door.

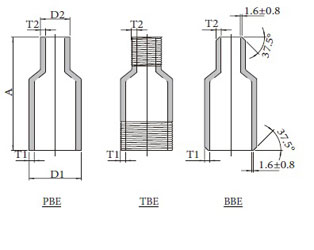

ANSI/ ASME B16.9 Buttweld Swedge Nipple Dimensions



Seamless Swage Nipples



.D. or Nominal Size Outside Diameter Length
NU EUE NU EUE
1/8 -- -- -- --
1/4 .540 -- 2 1/4 --
3/8 .675 -- 2 1/2 --
1/2 .840 -- 2 3/4 --
3/4 1.050 -- 3 --
1 1.315 1.469 3 1/2 4 1/2
1 1/4 1.660 1.812 4 6

I.D. or Nominal Size Outside Diameter Length
NU EUE NU EUE
1 1/2 1.900 2.094 4 1/2 6
2 2.375 2.594 6 1/2 8
2 1/2 2.875 3.094 7 8
3 3.500 3.750 8 8
3 1/2 4.000 4.250 8 8
4 4.500 4.750 9 9



ANSI/ ASME B16.9 Buttweld Swedge Nipple Packing & Shipping

Package details: Each order is packaged according to the customer' s standards including preparation for export such as wooden case, pallet or according to customer's requirement All shipping documentation is provided for seamless delivery from mill to customer.

We export to:

ANSI/ ASME B16.9 Buttweld Swedge Nippleexport,manufacture & supply in Saudi arabia, Dubai, Turkey, Kuwait, USA , Canada & Oman



ANSI/ ASME B16.9 Buttweld Swedge Nipple Application Industry

Sagar Forge & Fittings is involved in manufacturing of ANSI/ ASME B16.9 Buttweld Swedge Nipple. These ANSI/ ASME B16.9 Buttweld Swedge Nipple are widely used in various industries such as:

Chemical
Petrochemical
Refineries
Fertilizers
Power Plant
Nuclear Power
Oil & Gas
Paper
Breweries
